Potable Water System (PWS) – Bronco Raptor (6th Gen)

$2,599.00

& Free Shipping

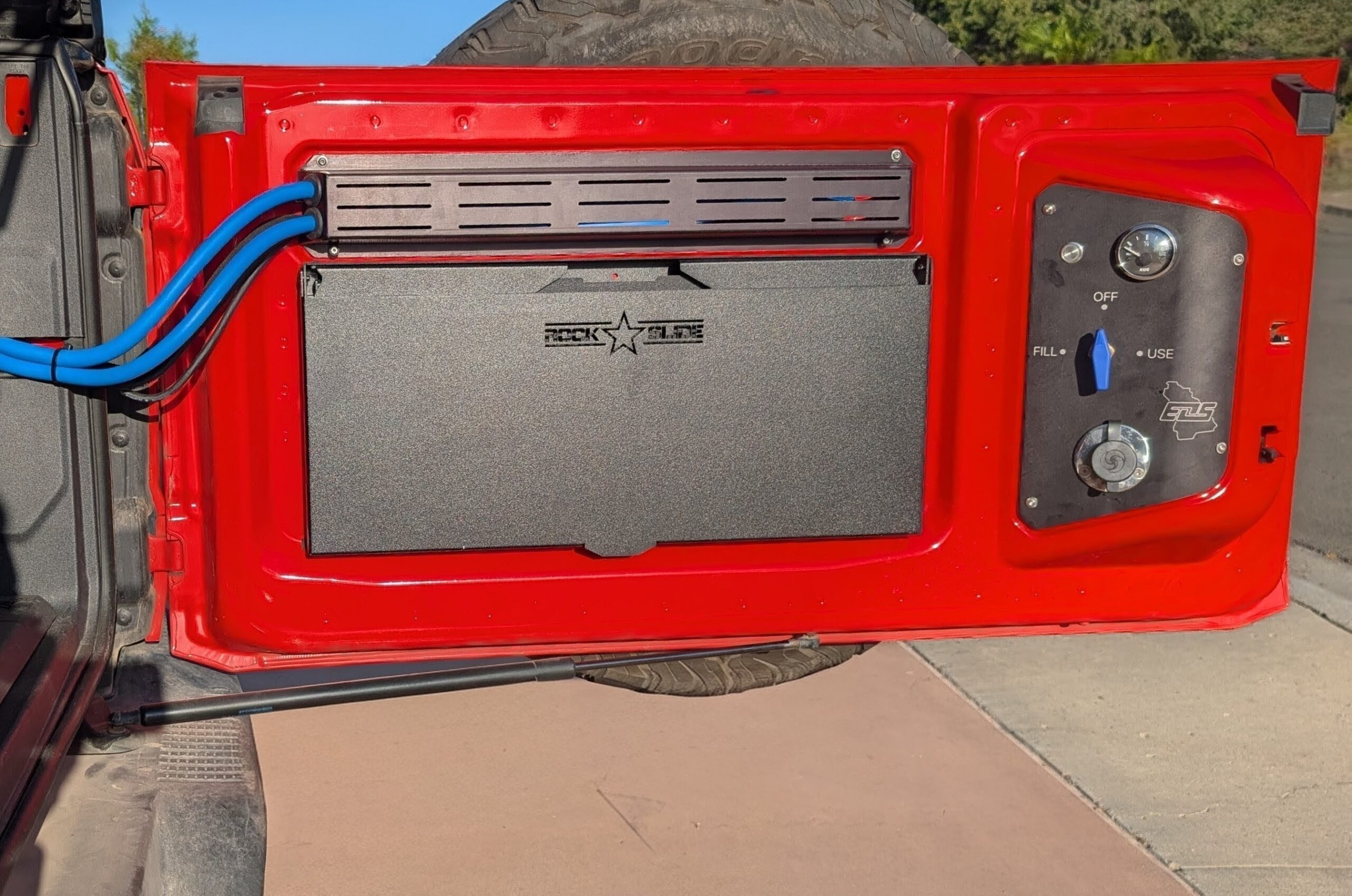

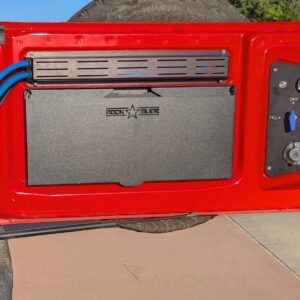

Carry 8 gallons of potable water in your Bronco Raptor via a highly integrated and meticulously designed water storage and dispensing system. At the heart of the system is a durable and protected stainless steel tank mounted with ZERO loss of ground clearance and ZERO loss of interior space. The control panel “disappears” into the unused space near the latch in the swing gate, providing all of the control and information you need with no clutter.

Guaranteed Safe Checkout

No-Risk Money Back Guarantee!
No Hassle Refunds
Secure Payments

Description
FAQ

Water — more essential to you than any other liquid for your rig. The Bronco Potable Water System delivers 8 gallons of clean, pressurized water in a seamless, fully integrated design. Always ready for drinking, camping, cleaning (hands, feet, shoes, bikes, tools, pets, kids), rinsing after water sports, first aid, or even emergency radiator and washer fluid fills.

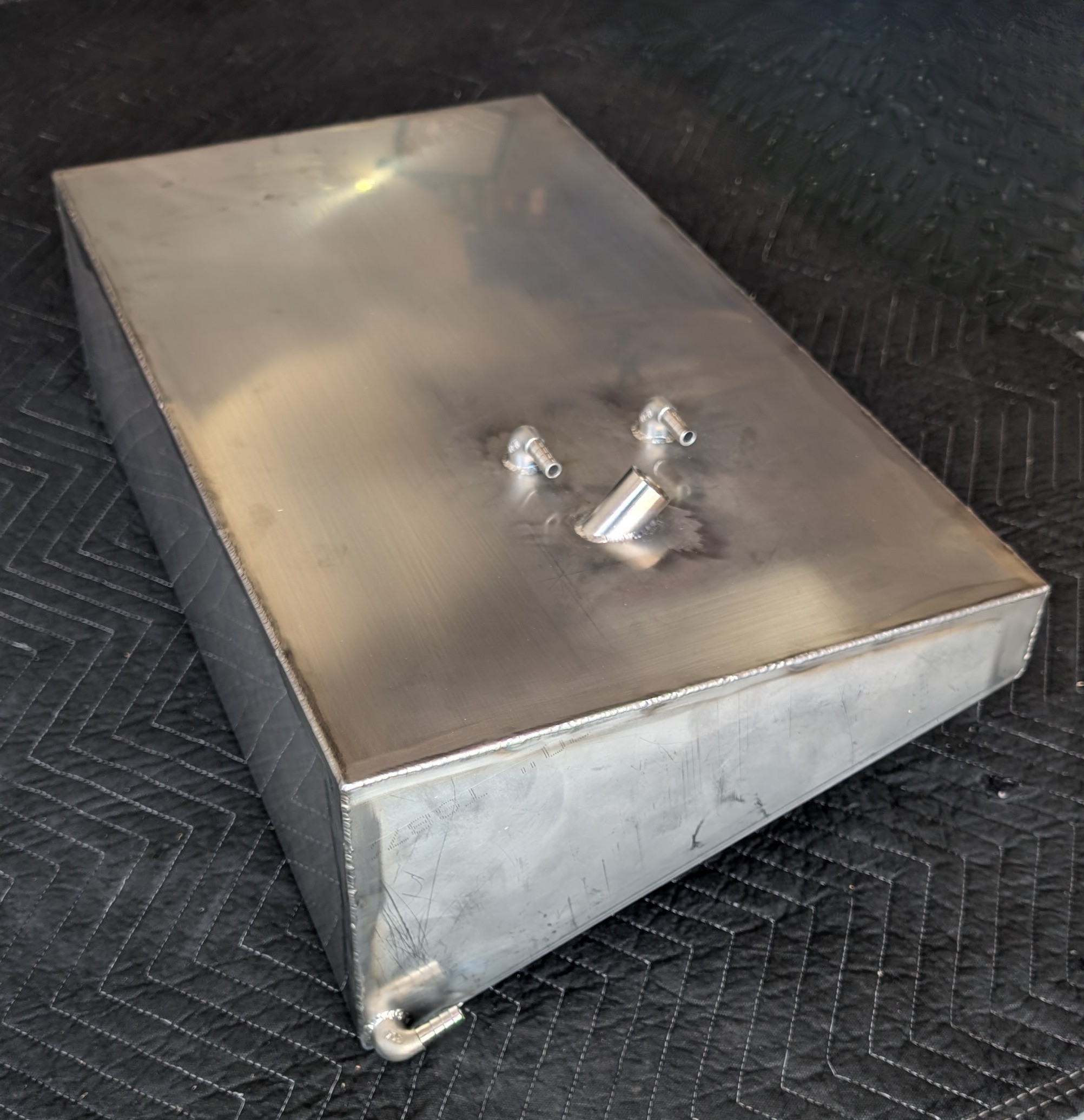

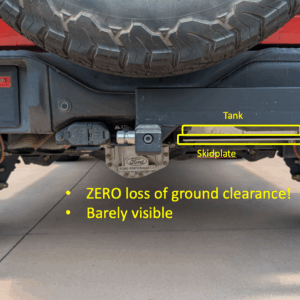

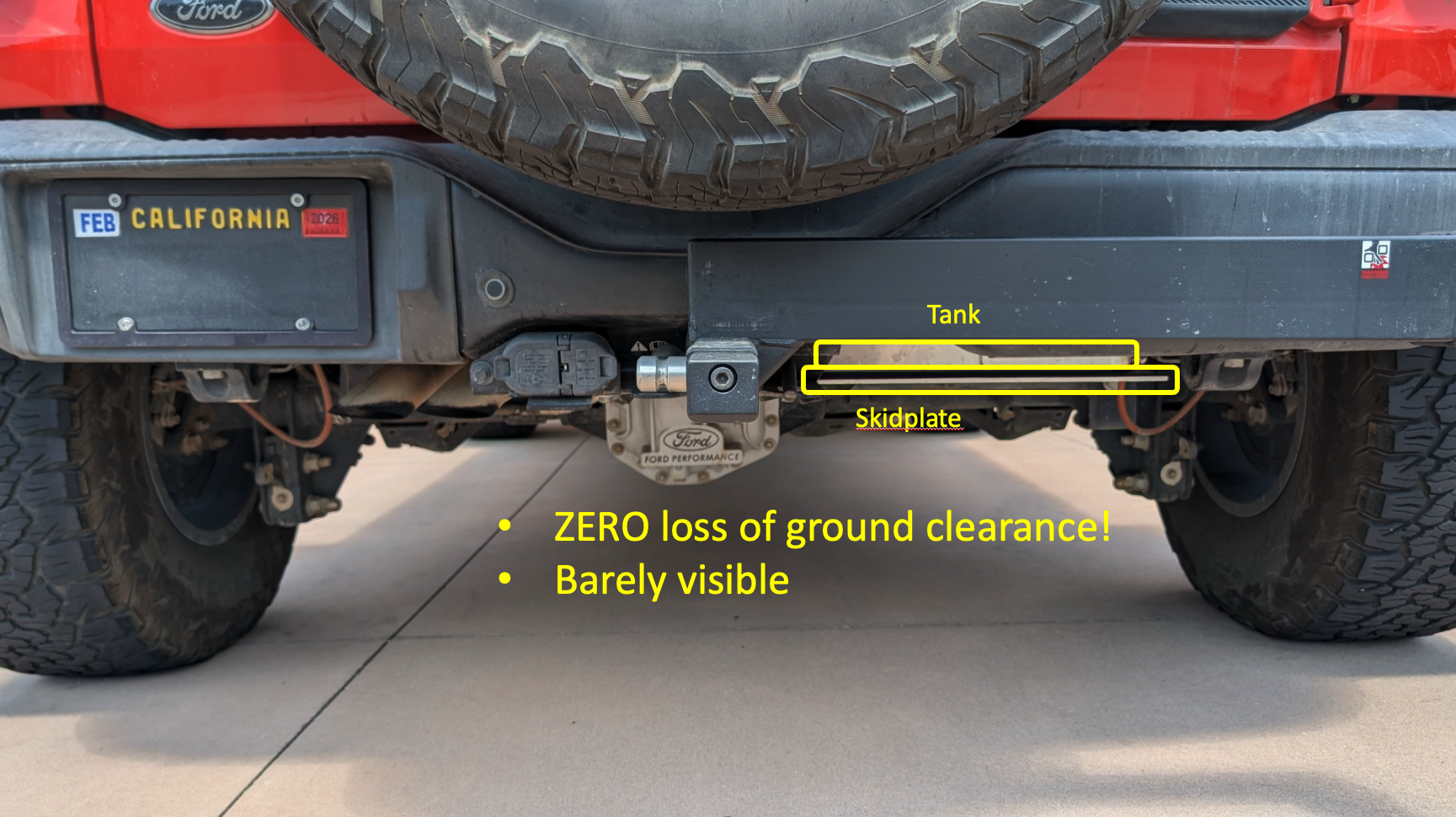

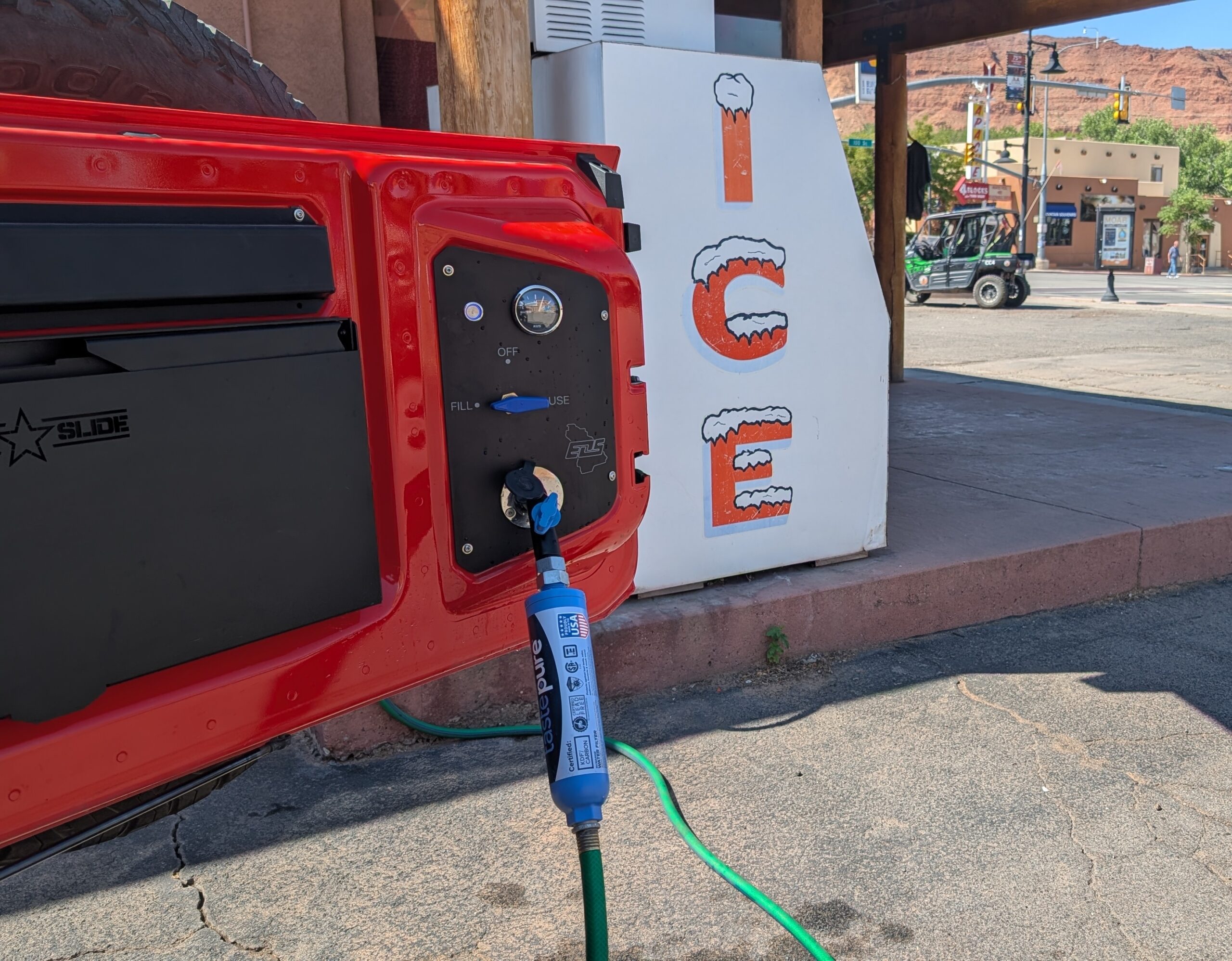

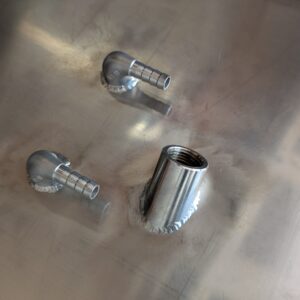

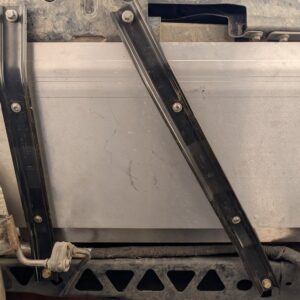

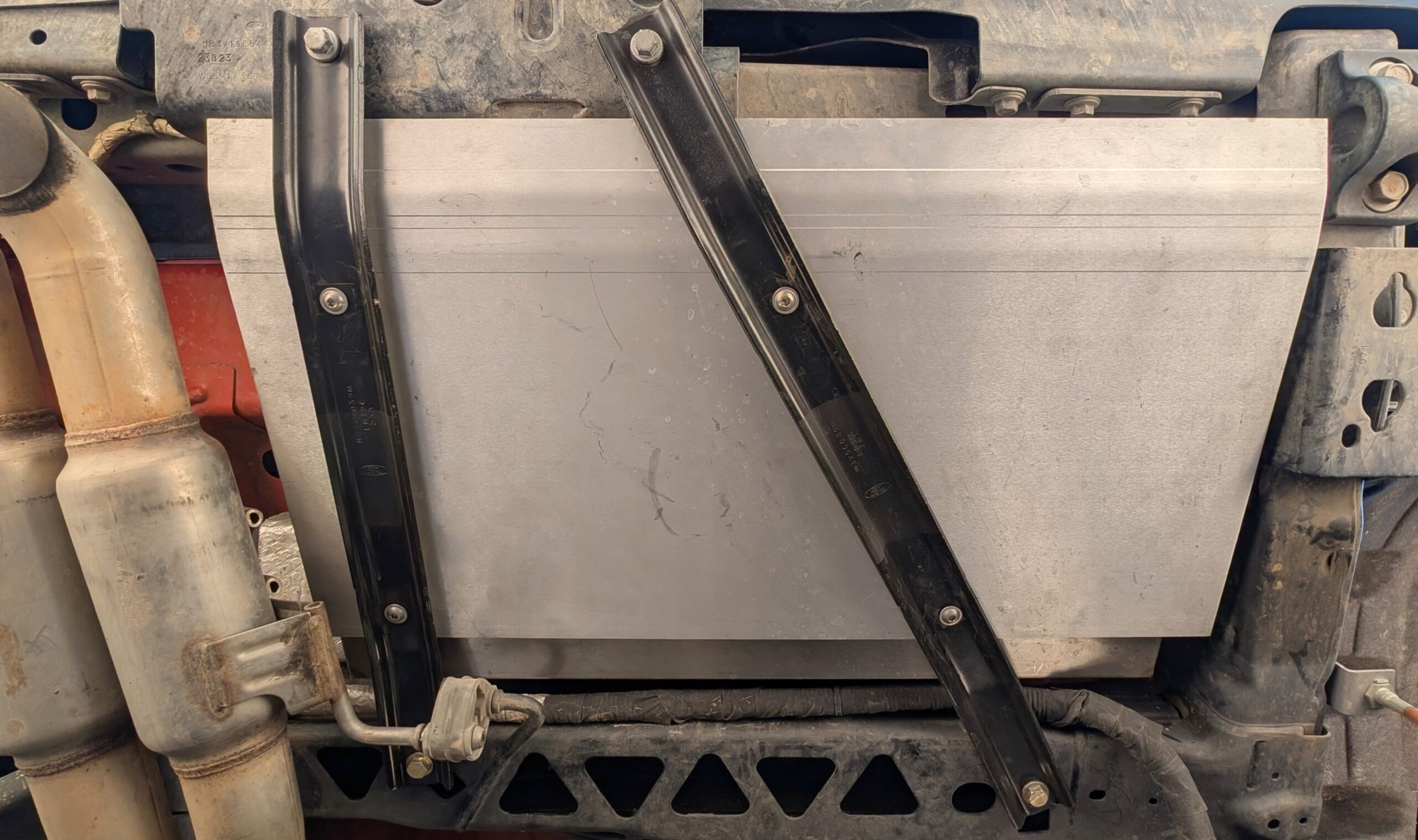

Unlike loose containers that spill, shift, or eat up storage, this system produces ZERO loss of ground clearance and ZERO loss of interior space. A custom-welded 304 stainless steel tank mounts to your factory hitch braces, low and protected above a stout aluminum skid plate. Filling is simple via any garden hose using the included 6 stage filter and swiveling stainless steel adapter.

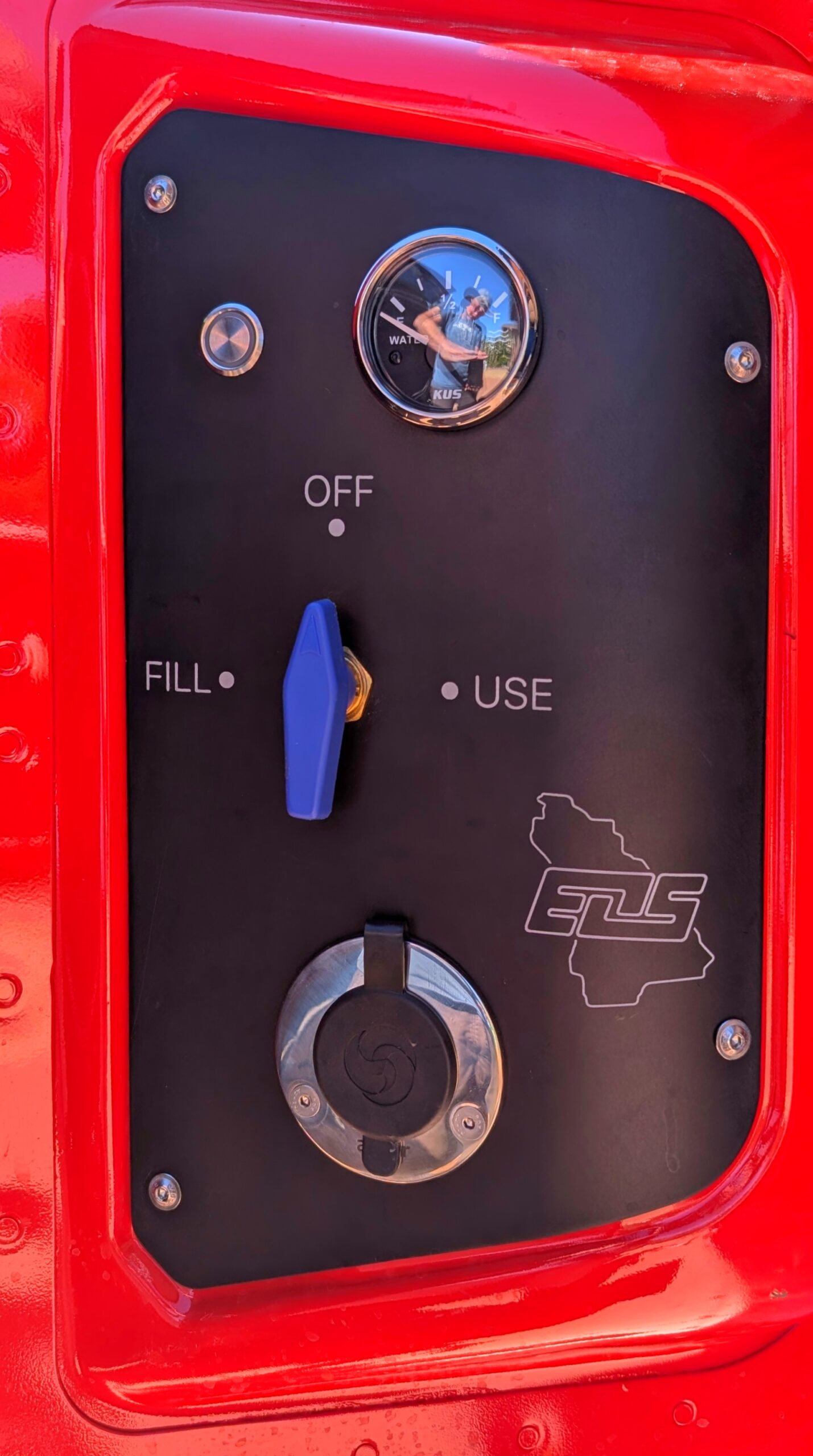

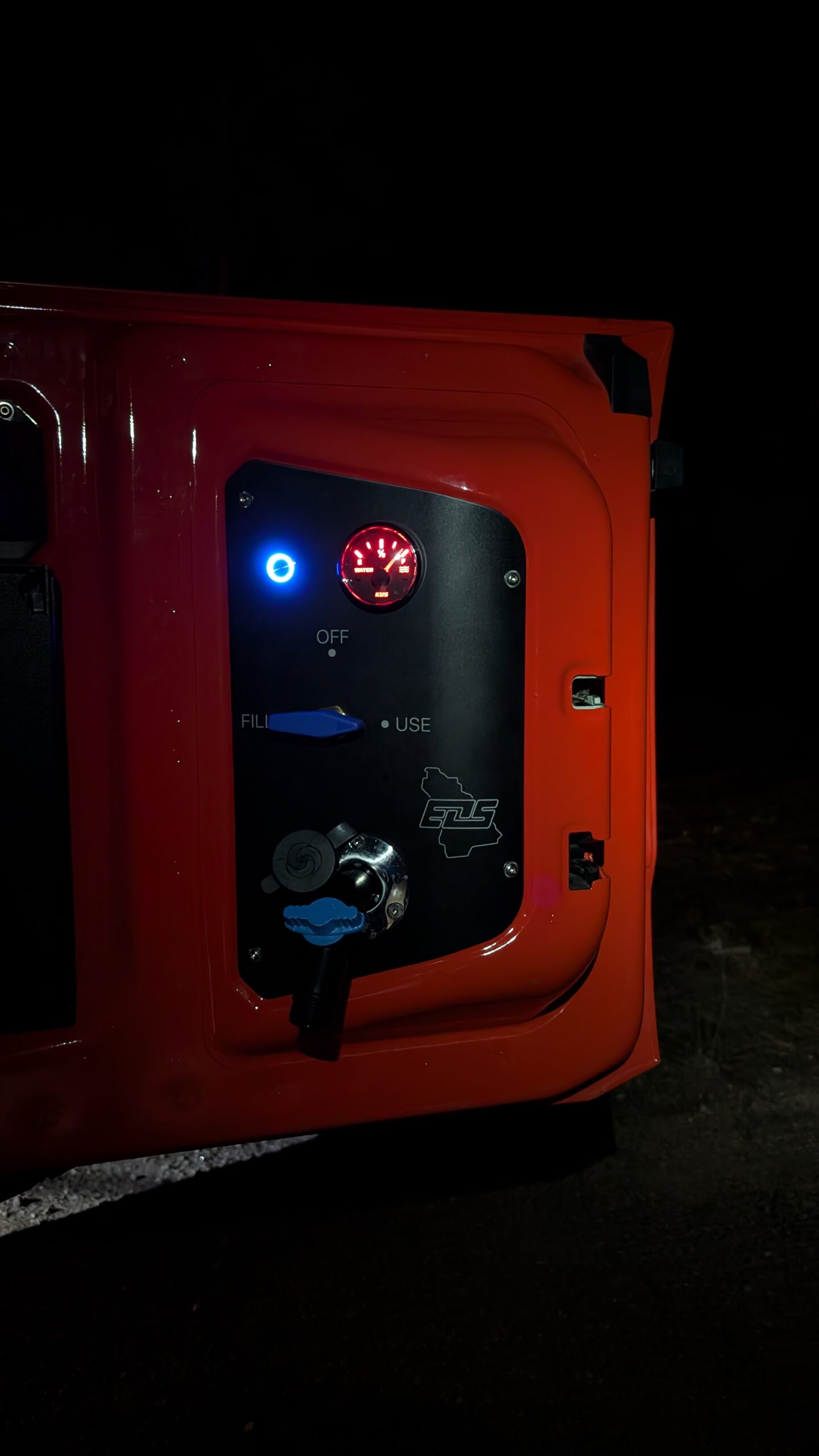

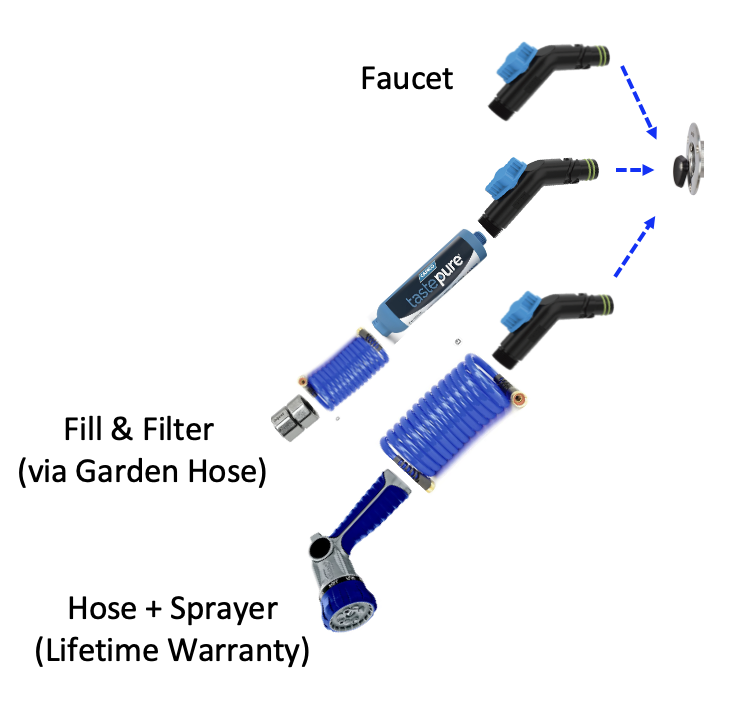

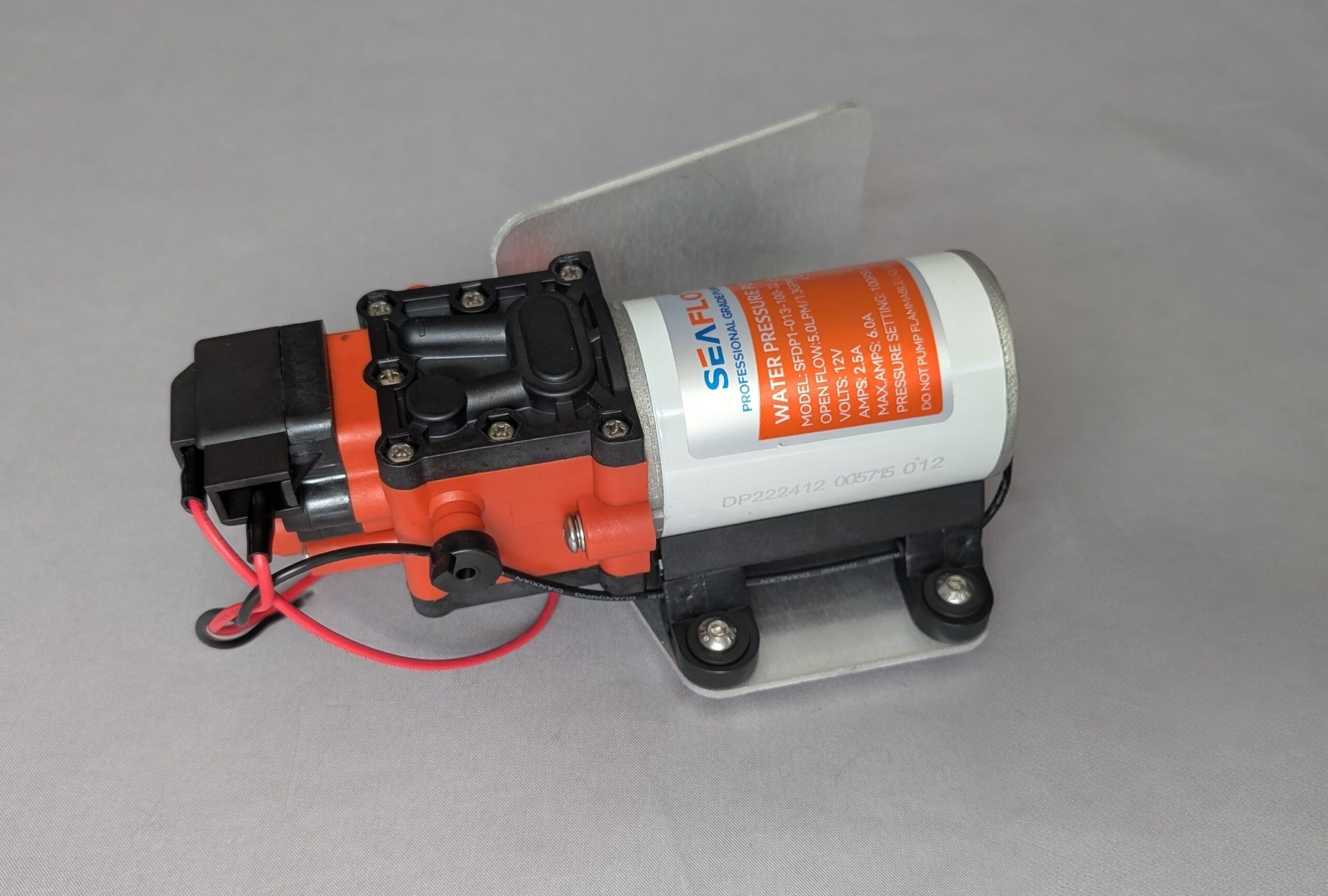

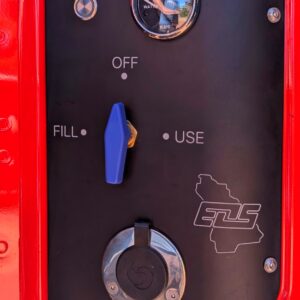

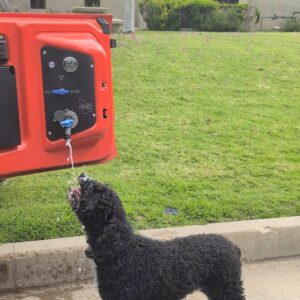

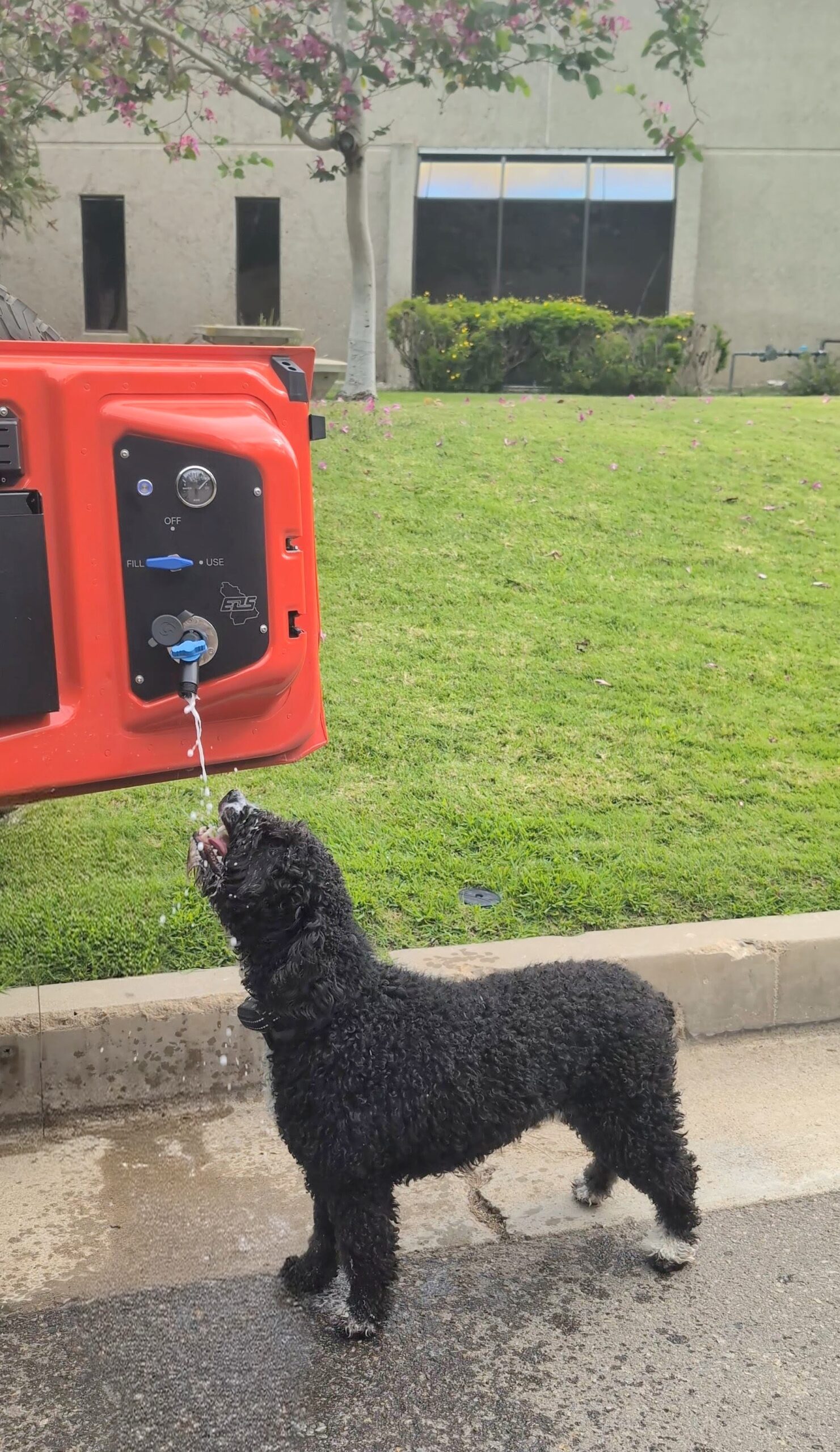

Premium features include a reliable, RV-grade, diaphragm pump (self-priming, pressure-switched and run-dry) and an intuitive control panel with everything you need and nothing you don’t: a 3-way valve for filling and dispensing through a single polished stainless steel spigot (the compact, durable and innovative Aquor Quick Connect Hydrant), a backlit level gauge powered by a non-contact in-tank sensor, and a stainless steel, LED-illuminated, power button on a black anodized aluminum panel. Also included: a 15-foot self-coiling hose with strain reliefs, solid brass fittings, replaceable seals, and a lifetime guaranteed, Orbit Max 8-pattern nozzle for any dispensing style/need.

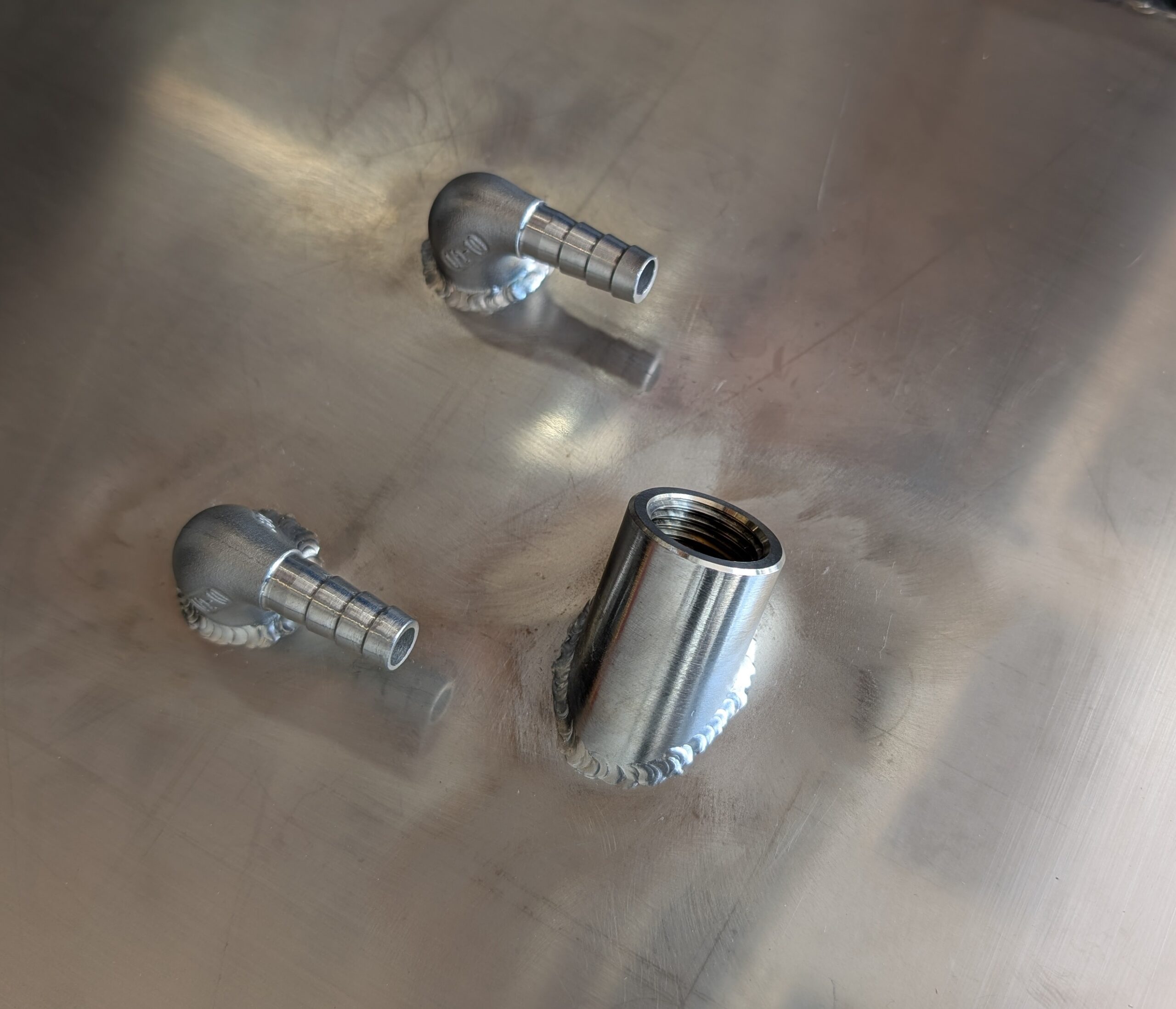

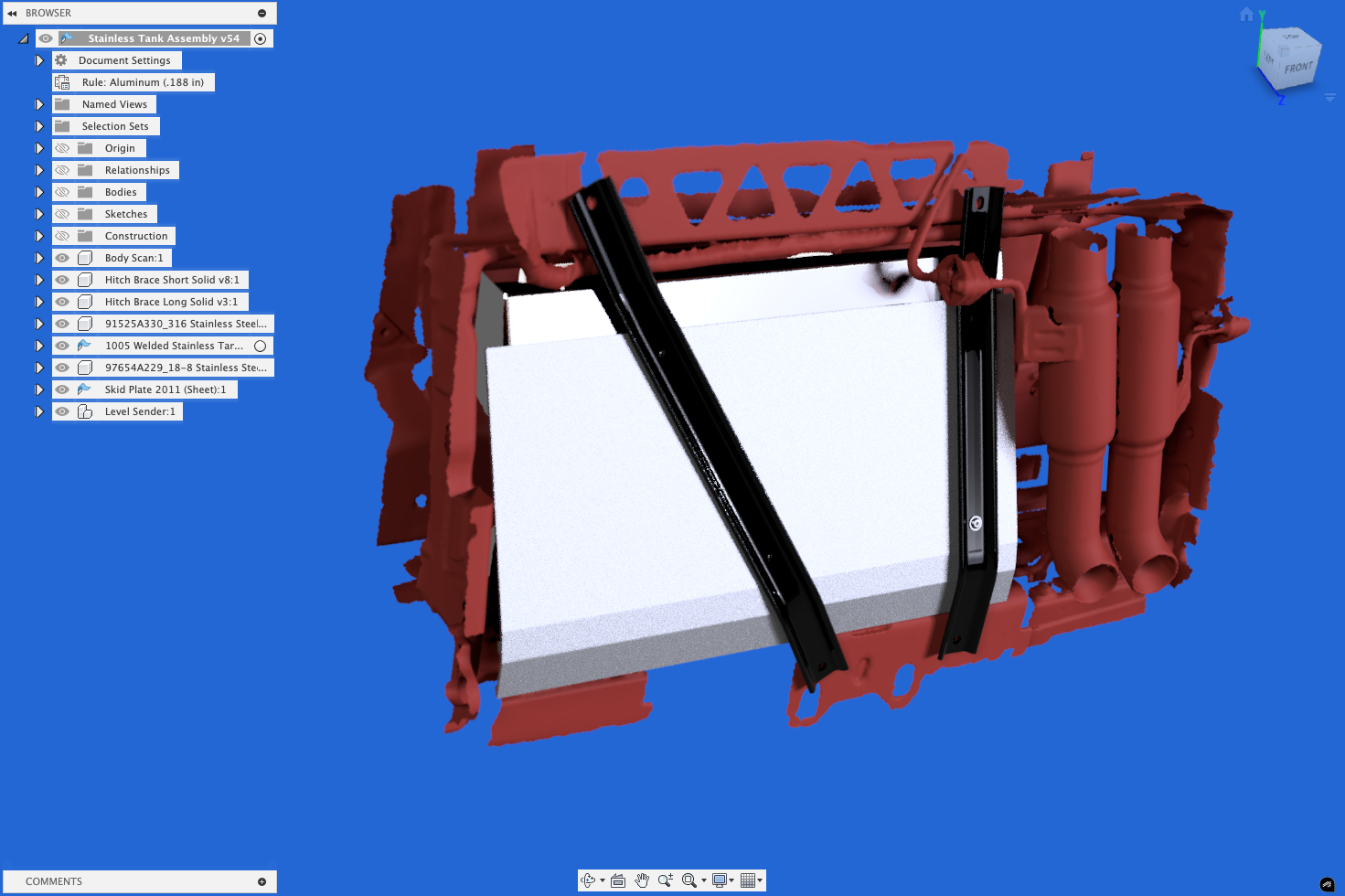

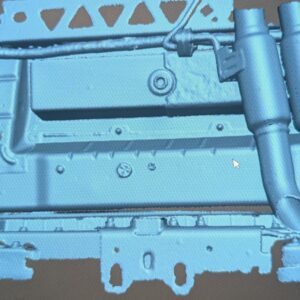

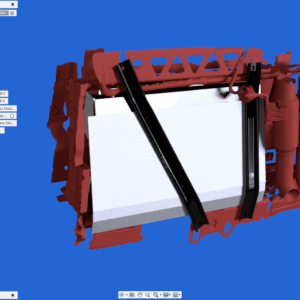

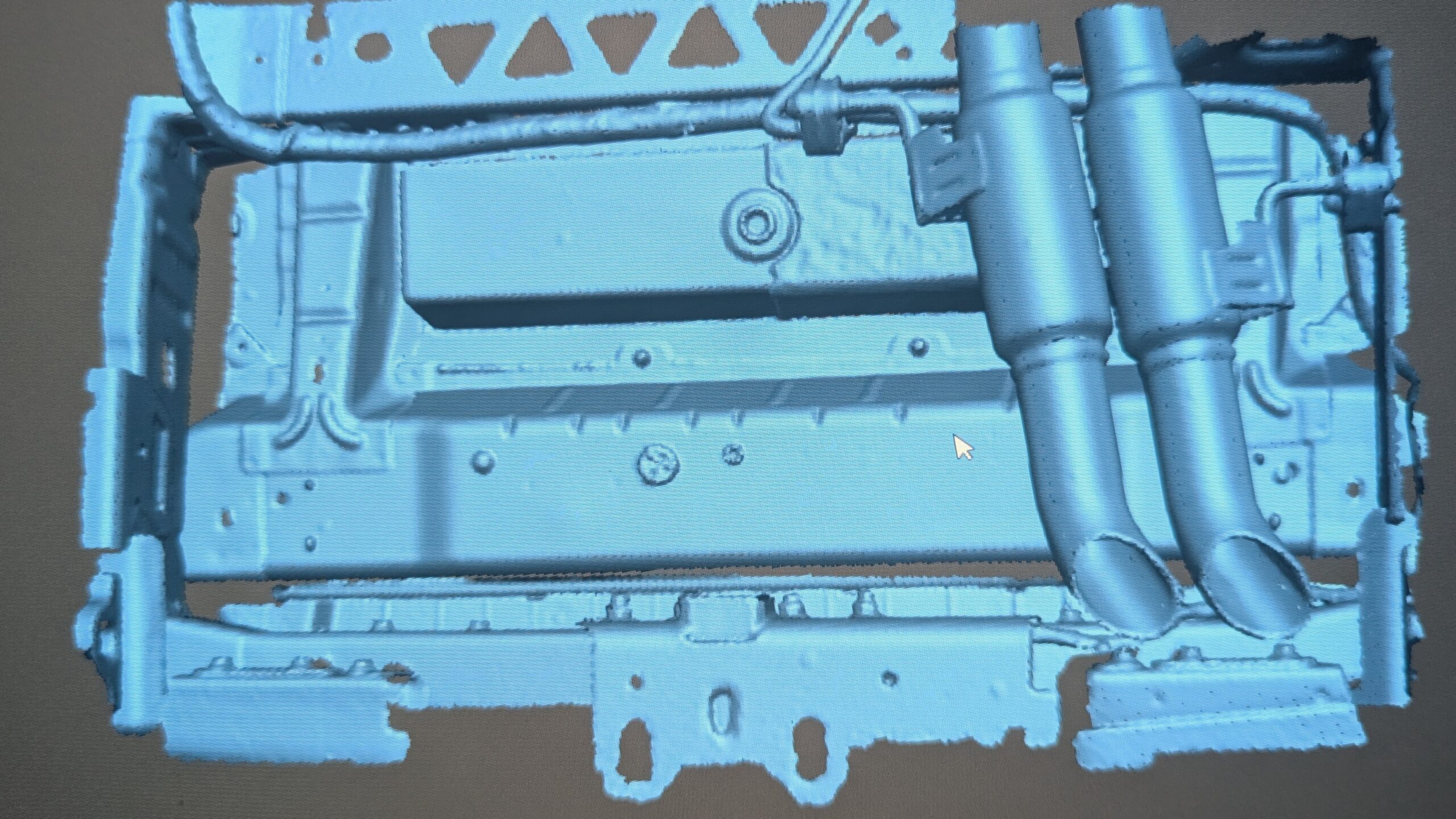

This is OEM+ integration and quality — engineered with impeccable 3D scanning, 3D CAD, and 3D Printing, premium materials, and rugged finishes to perform in the harshest conditions. All fasteners, hose clamps, barbs are stainless steel. Designed and manufactured in San Diego, CA, and backed by a real, no-nonsense warranty.

Does this system work in a non Raptor Bronco?
- Yes, but it requires some changes to the vehicle beforehand. You will need an aftermarket side running (Raptor style) exhaust as well as the OEM Ford Raptor hitch and hitch braces. Please do not order the system for a non Raptor without directly consulting EOS beforehand.
Does this system work in a 2-Door Bronco?
- Possibly. We have not examined the critical areas of a 2D in enough detail to determine. It certainly will not with any factory stock 2D.
How long/difficult is the installation?
- We believe the installation, on a scale of 1 = easy for anyone to 5 = professional required, is a 4. Anyone competent with basic hand and power tools, able to disassemble vehicle interior and exterior trim panels and with the ability to follow a simple wiring schematic, can accomplish this install. I think most owners will get a self install done in 2 days, obviously depending on how many hours/day.
Are any specialty tools required for this installation?
- Yes, and almost all of them are provided with the system at no additional cost. If you are curious about the additional required tools that you or your shop will need that are not included, please email us. There is nothing uncommon.
Is modification to the vehicle body required during install?
- The existing opening in the roll bar must be slightly enlarged for tubing pass through and fitting of a protective grommet. Holes must also be drilled in the right rear fender liner (sheet metal). This is critical for the high level of integration of the PWS. Key points on the latter:
  - The holes are above the vehicles water fording depth.
  - The holes are fully sealed with precisely fitting sealing grommets and have been tested with high pressure spray and submersion.
  - The affected area is well hidden and protected by the fender liner. The hose routing, seals, fittings, vent line and vent in this area are 99% invisible once the fender liner is reinstalled.
  - If for any reason the system is removed, EOS can provide robust sealing plugs.
- Additional details as to these safe/minor modifications and pictures from the installation manual are available upon request.
